Anti static PTFE Glass Fiber, conductive PTFE release sheet
Anti static PTFE Glass Fiber is unlike normal PTFE coated fiberglass fabric, this product is made with special formulated anti static PTFE, which can eliminate static electricity during production.
The OHMS(surface resistant) per square meter of Anti static PTFE coated fabrics can be 10^7 to 10^5, which will show excellent conductive and non stick property.
Anti static PTFE Glass Fiber
Property Anti static PTFE Glass Fiber
This PTFE Coated Glass Fabrics has an anti static and thermal conductivity properties, which is a modified PTFE coated fabric to increase the surface resistant.

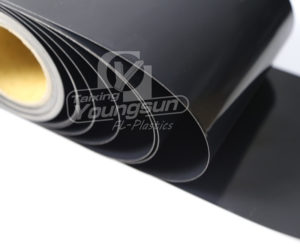

The color of Anti static PTFE Glass Fiber is black and available in PTFE coated glass fabrics, Self adhesive PTFE Fabrics, PTFE open mesh fabrics.
The property of Anti static PTFE fiberglass fabric is same as PTFE fabric premium series.
★ Non-stick surface and easy release
★ Working continuous from -70°C – +260°C
★ Chemical resistant and environmental resistant
★ High tensile strength and dimensional stability
★ Reusable and has long lifetime
★ Abrasion and UV resistant
Applications of Anti static PTFE coated glass fabrics
Anti static PTFE coated fiberglass fabrics is designed for electronics industry like wire or cable insulation and protection for LCD/FPC/PCB, apparel industry like fusing machines conveyor belts, release sheet in shoes industry, PV industry like solar cell panel molding release or welding belts, auto industry like plastic molding release sheet, packing industry like release fabric for heat press machines, textile industry, drying industry and so on.
The main Specifications of Anti Static PTFE Coated Fabrics
| Product | Product Category | Coating |
|---|---|---|
| PTFE GLASS FABRIC | ANTI STATIC SERIES | PTFE(TEFLON) |
| PTFE Fabric Anti static Series | |||||
|---|---|---|---|---|---|
| Style | Standard Width(mm) Please ask for other widths | Normal Thickness (mm) | Weight (g/m2) | PTFE Content (%) | Tensile Strength Warp/Fill (N/cm) |
| YS9008BJ-ESONE | 1000, 1250 | 0.08 | 155 | 68 | 102/98 |
| YS9011BJ-ESONE | 1000 | 0.11 | 220 | 48 | 220/180 |
| YS9012BJ | 1000 | 0.12 | 245 | 59 | 230/190 |
| YS9013BJ | 1000, 1250, 1500 | 0.13 | 270 | 60 | 240/200 |
| YS9018BJ | 1000, 1250 | 0.18 | 370 | 55 | 320/305 |
| YS9023BJ | 1000 | 0.23 | 500 | 60 | 420/360 |
| YS9025BJ-ESONE | 1000, 1250, 1500, 2000, 2600 | 0.25 | 530 | 62 | 280/256 |
| YS9035BJ | 1000, 1250, 1500, 2000, 2600, 3200 | 0.35 | 680 | 57 | 540/508 |
| YS9037BJ | 1000, 1250, 2000, 3200 | 0.37 | 730 | 60 | 700/620 |
| YS9040BJ | 1000, 1500, 3500 | 0.40 | 820 | 57 | 700/620 |
| YS9090BJ | 1000, 1800, 3000, 4000 | 0.90 | 1650 | 51 | 1240/1180 |
For other specifications, please feel free to contact us for special production.
For samples of Anti static PTFE Glass Fiber, please feel free to contact us.
Note:
Weight Tolerance g/m² = ±%5
All technical data are based on average values. These values are based on test results we believes to be reliable, but they are not to be constructed in any manner as warranties expressed.
